Thermally Stable Epoxy Resin for High-Temperature Electrical Insulators

Place of Origin : Shanxi, China

Brand Name : WENYOU

Model Number : 9287F

MOQ : 20

CAS No. : 1675-54-3

Molecular Formula : C21H24O4

EINECS No. : 26-823-5

Classification : Double Components Adhesives

Main Raw Material : EPOXY

Type : Epoxy resin for Electrical Insulation

Resin System : PAG resin system

Formulation Resin : LE-9287F

Formulation Hardener : LH-9287F

Formulation Filling : Silica flour(*10)

Filling Quantity : 350-450pbw

Color Paste : LC-serious

Color Paste Quantity : 3pbw

Processing Method : Conventional casting process under vacuum

Heat Shock Resistance : Excellent

Contact Now

Product Description

Thermally Stable Epoxy Resin for Insulators in High - Temperature Environments


In certain applications, such as in industrial furnaces or high - power electrical equipment, insulators are subjected to high
temperatures. Our thermally stable epoxy resin is engineered to maintain its insulating properties even at elevated temperatures. It has a high glass transition temperature, which means it can withstand heat without softening or losing its structural integrity. This is crucial for insulators as any change in their physical properties at high temperatures could lead to a decrease in insulation performance. For instance, in the insulation of motors operating in hot environments, our epoxy - resin - based insulators can prevent overheating and subsequent damage to the motor windings. The thermal stability of the resin also contributes to the overall efficiency of the electrical system, as it reduces the need for additional cooling mechanisms in some cases.


Property

Bi-component Epoxy resin system/Liquid can be used to processes of Conventional casting process under vacuum. Excellent splitting resistance& heat shock resistance Excellent technical& mechanical properties. Property

Medium& high voltage insulation switch parts, such as: Insulators,10kv\35jv cyrrebt& voltage transformers and dry-type transformers etc. Applications

Formulation


Epoxy resin
LE-9287F
100pbw
Hardener
LH-9287F
100pbw
Filling
Silica flour(*10)
350-450pbw
Color paste
LC-serious
3pbw
Related products
Thermally Stable Epoxy Resin for High-Temperature Electrical Insulators
Thermally Stable Epoxy Resin for High-Temperature Electrical Insulators
Thermally Stable Epoxy Resin for High-Temperature Electrical Insulators
Packing and delivery
Thermally Stable Epoxy Resin for High-Temperature Electrical Insulators
Thermally Stable Epoxy Resin for High-Temperature Electrical Insulators
Thermally Stable Epoxy Resin for High-Temperature Electrical Insulators
Thermally Stable Epoxy Resin for High-Temperature Electrical Insulators
Certficate
Thermally Stable Epoxy Resin for High-Temperature Electrical Insulators
Thermally Stable Epoxy Resin for High-Temperature Electrical Insulators
Our Company
Thermally Stable Epoxy Resin for High-Temperature Electrical Insulators

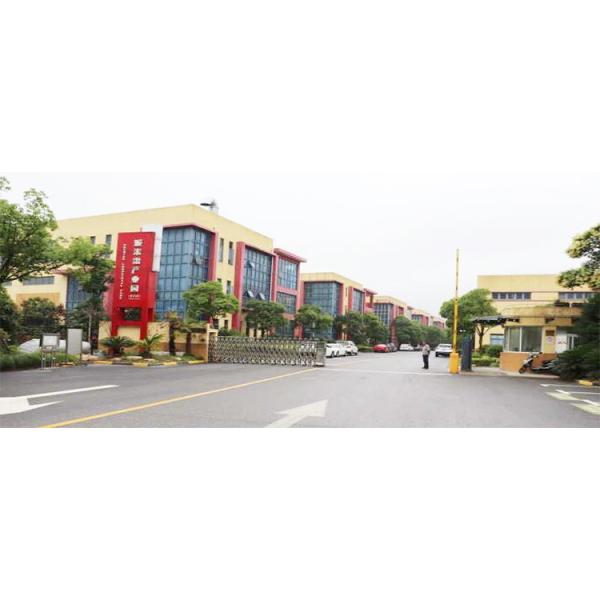

Shanghai Wenyou industry co., Ltd. Is located in Fengxian District,Shanghai ,China.It is a professional company engaged in the manufacturing,R&D,sales of the epoxy resin,curing agent and other Products.Our products include epoxy resin,Flame retardant resin,curing agent,outdoor modifier,toughening agent ,epoxy paste,demoulding agent and filler,they are not only sold in china,but also exported to Europe,Southeast Asia,Middle East region and Russia and the other CIS countries.



The company has passed management system of ISO9001 and ISO14001,the European Union”SGS”,and also the United States UL certification.The products comply with ROHS and REACH safety regulations,which are widely used in indoor and outdoor 10-1100KV high voltage electrical insulation,such as:high voltage switch insulation parts,mutual inductors,transformers,reactors,etc.All kinds of electronic components and products can be applied to different application process and molding equipment,such as vacuum pressure casting technology and APG technology.The Quality of our products is the award-winning in the market,and also established a good reputation for our company.



Wenyou is based on china,serving for global electricity,providing stable products and high quality service to all of the world.
